Platform Interface Cables, Thermistors, & Replacement Parts

Product Summary

Interface cables and thermisitors for connecting Warner temperature controllers to Warner products.

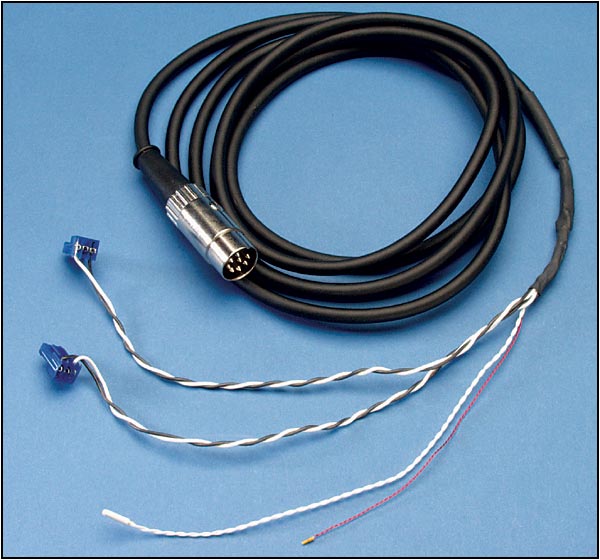

CC-28

Interface cable with DIN connector for TC-344C and TC-324C temperature controllers.

The CC-28 cable assembly has two thermistors at the platform end: The T1 control thermistor (TS-60P) attaches to the platform and a T2 bead thermistor (TS-70B) is used to monitor the bath temperature.

The CC-28 is primarily used with any Series 20 heater platform to to connect to either a TC-344C or TC-324C temperature controller. The CC-28 will also connect to several other platforms, including the DH-35 and DH-35iL Cell Culture Dish Incubator/Heater , the QE-1 Quick Exchange Platform, or the DH-40iL Cell Culture Dish Incubator/Heater.

Platform Interface Cables, Thermistors, & Replacement Parts

CC-15

Interface cable with tinned leads (no DIN connector) and thermisitors

Platform Interface Cables, Thermistors, & Replacement Parts

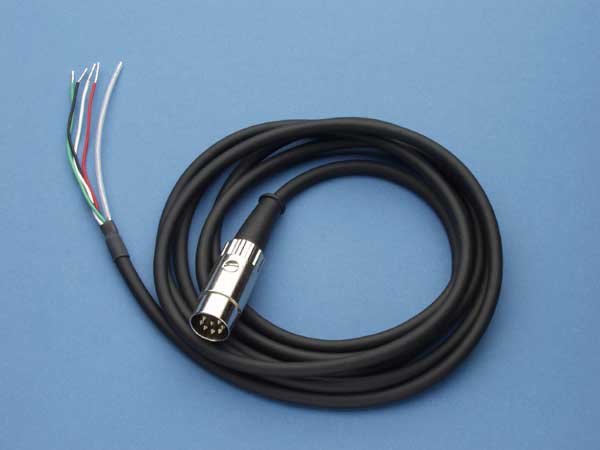

CC-35

Interface cable with DIN connector for TC-344C or TC-324C, unterminated on platform end with no thermistors or other connectors.

Platform Interface Cables, Thermistors, & Replacement Parts

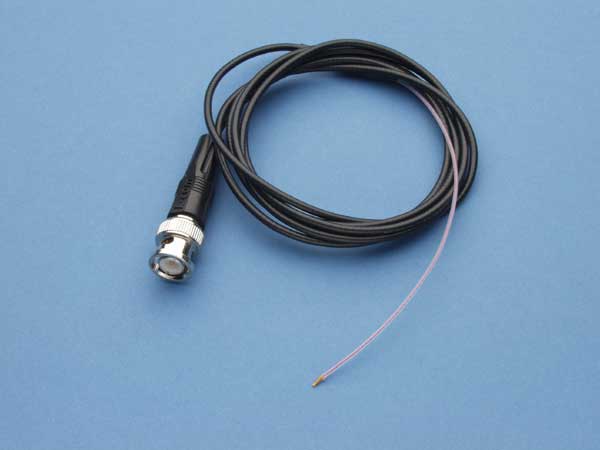

TA-29

Cable with bead thermistor, BNC end, included with most inline solution heaters. Thermistor can be replaced by TS-70B. Thermistor dimensions are 0.85 x 4.6 mm.

Platform Interface Cables, Thermistors, & Replacement Parts

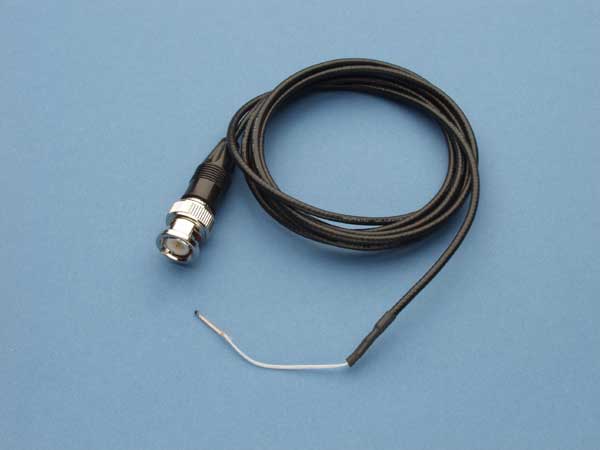

TA-30

Cable with glass bead thermistor, BNC end. Thermistor can be replaced by TS-30G. Thermistor dimensions are 1.2 x 4.6 mm.

Platform Interface Cables, Thermistors, & Replacement Parts

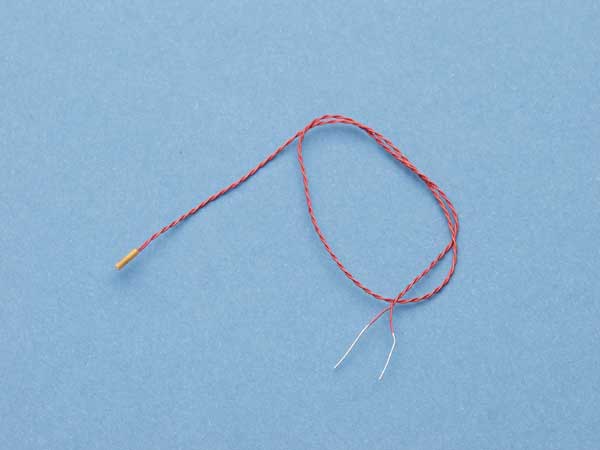

TS-60P

Replacement feedback thermistor for CC-28 cable

Platform Interface Cables, Thermistors, & Replacement Parts

TS-70B

Replacement bead thermisitor for CC-28 and TA-29 cables. Thermistor dimensions are 0.85 x 4.6 mm.

Platform Interface Cables, Thermistors, & Replacement Parts

TS-30G

Glass bead thermisitor compatible with CC-28 and TA-29 cables. Can replace TS-70B. Thermistor dimensions are 1.2 x 4.6 mm.

Platform Interface Cables, Thermistors, & Replacement Parts

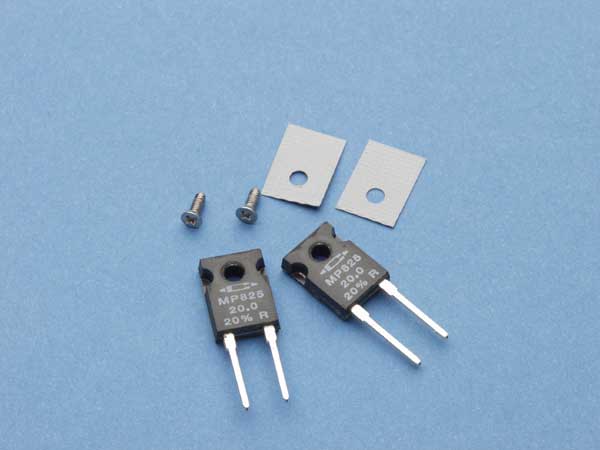

RH-2

Heater blocks for Series P, PH, and Series PM platforms

Replacement heater blocks for Warner platforms>

Non-heater platforms can be converted to heater platforms with an upgrade kit consisting of a pair of resistive heater blocks, heat transfer pads and mounting screws. Tapped holes for the heater blocks are included in all plain platforms. The only tool required for installation is a small Philips screwdriver.

Note: Older platform models may not be upgradable. Consult Warner Technical Support if your platform does not have slots under the 'wings'.

Platform Interface Cables, Thermistors, & Replacement Parts

Customers from Europe and Australia can use the Multi Channel Systems - Online Shop to order Warner products or create quotes.

Order No. Model No. Product Description USA Price Order
Cables
64-0106 CC-28 Cable assembly for heater controllers to platform Login Login
64-0107 TA-29 Cable with bead thermistor Login Login
64-0108 TA-30 Cable with glass thermistor Login Login
64-0109 CC-35 Cable assembly for heater controllers, unterminated with tinned leads at platform end Login Login
64-0303 CC-15 Cable assembly for heater controllers, with tinned leads at connector end Login Login
Thermistors
64-0270 TS-70B Replacement bead thermistor for CC-28 Cable Login Login
64-0269 TS-60P Replacement probe thermistor for CC-28 cable Login Login
64-0271 TS-30G Glass thermistor, alternative to 64-0270 for Series 20 chambers Login Login
Replacement Parts
64-0274 RH-2 Heater elements for Warner chambers and platforms, 2 pack Login Login
64-1506 RPC-1 Replacement platform clamps and screws for P and PH Series platforms, 2 pack Login Login
