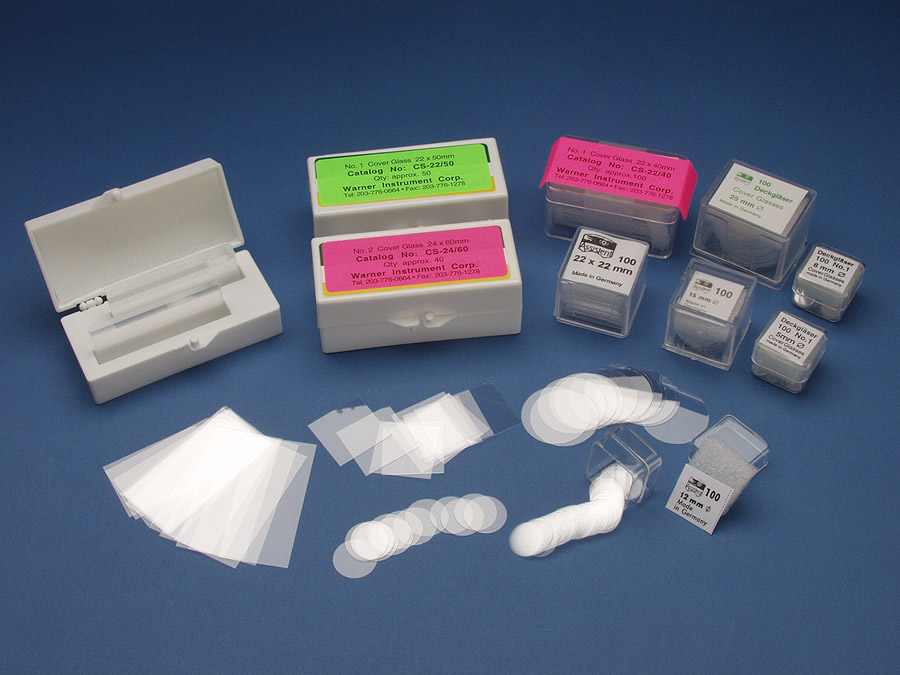

D263 Coverslip/Coverglass
Product Summary
High quality D263 coverslip glass is essential for microscopy and imaging. Small diameter coverglass with diameters ranging from 3 to 8 mm are now available in convenient packages of 100.
- 3 mm round in #0 or #1 for cranial window technique
- Available in #0, #1, #1.5 and #2 thickness
- Round, square, and rectangular geometries
- High tolerance versions available
- Ships from stock for fast delivery
Coverslip Glasses
For microscopy at higher resolutions (e.g., 40X, 60X or 100X), choosing the correct coverslip thickness is critical to good image resolution.
Warner's line of German borosilicate glass include coverslips at #0, #1, #1.5 and #2 thickness. We also offer high tolerance (thickness) coverslips in several popular sizes.
Coverslip glasses in most geometries and thickness are stocked in depth, especially the sizes used with Warner chambers. Coverslip glasses are shipped from stock in convenient packages of 100 (unless stated otherwise). Consult the Specifications tab to select the correct coverslip/coverglass for your chamber and application.
| Index of refraction (ne): 1.5255 ± 0.0015 | ||
| Chamber/Coverglass Cross-Reference Table | ||
|---|---|---|
| Thickness guide: | ||
| Number | Thickness | Tolerance |
| #0 | 0.10 ± 0.02 mm | 0.08-0.12 mm (80-120 µm) |
| #1 | 0.15 ± 0.02 mm | 0.13-0.17 mm (130-170 µm) |
| #1.5 | 0.17 ± 0.02 mm | 0.15-0.19 mm (150-190 µm) |
| #1.5 High Tolerance | 0.17 ± 0.01 mm | 0.16-0.18 mm (160-180 µm) |
| #2 | 0.22 ± 0.02 0 mm | 0.19-0.23 mm (190-230 µm) |
| Tolerance for circular coverglass is nominally ±0.20 mm up to ±0.30 mm, (rarely) ±0.50 mm | ||
| Tolerance for square and rectangular coverglass is nominally ±0.20 up to ±0.30 mm | ||
| Round coverglass (see the specific chamber page for a listing of glasses for that chamber) |
|||||
|---|---|---|---|---|---|
| Coverglass | Fits Chamber | Dimension (dia) |
Thickness | QTY | Order No. |
| CS-3R | 3 mm | #1 | 100 | 64-0720 | |
| CS-3.5R | 3.5 mm | #1 | 100 | 64-0739 | |
| CS-4R | 4 mm | #1 | 100 | 64-0724 | |
| CS-4.5R | 4.5 mm | #1 | 100 | 64-0740 | |
| CS-5R | RC-24E | 5 mm | #1 | 100 | 64-0700 |
| CS-7R | 7 mm | #1 | 100 | 64-0723 | |
| CS-8R | RC-10 | 8 mm | #1 | 100 | 64-0701 |
| CS-12R | RC-25 | 12 mm | #1 | 100 | 64-0702 |
| CS-12R15 | RC-25 | 12 mm | #1.5 | 100 | 64-0712 |
| CS-15R | RC-20 RC-20H RC-25F |
15 mm | #1 | 100 | 64-0703 |
| CS-15R15 | RC-20 RC-20H RC-25F RC-37WC RC-42LP |
15 mm | #1.5 | 100 | 64-0713 |
| CS-18R | RC-37FC RC-37WC RC-41LP RC-43C |
18 mm | #1 | 100 | 64-0384 |
| CS-18R15 | RC-37FC RC-37WC RC-41LP RC-43C |
18 mm | #1.5 | 100 | 64-0714 |
| CS-25R | RC-21BR RC-21BRFS RC-21BRW RC-21BDW RC-40LP RC-40HP RC-43C RC-46SNLP RC-46SLP RC-46FSLP RC-50 |
25 mm | #1 | 100 | 64-0705 |
| CS-25R15 | RC-21BR RC-21BRFS RC-21BRW RC-21BDW RC-40LP RC-40HP RC-43C RC-46SNLP RC-46SLP RC-46FSLP RC-50 |
25 mm | #1.5 | 100 | 64-0715 |
| CS-30R15 | RC-30 | 30 mm | #1.5 | 90 | 64-1499 |
| CS-40R | RC-30 | 40 mm | #1 | 100 | 64-1500 |
| CS-40R15 | RC-30 | 40 mm | #1.5 | 100 | 64-1696 |
| Rectangular coverglass (see the specific chamber page for listing of glasses for that chamber) |
|||||
| Coverglass | Fits Chamber | Dimension | Thickness | QTY | Order No. |
| CS-22/3015 | RC-30 | 22x30 mm | #1.5 | 100 | 64-0716 |
| CS-22/40 | RC-22 RC-22C RC-24 RC-24E RC-24N RC-26 RC-26G RC-26GLP RC-30 |
22x40 mm | #1 | 50 | 64-0707 |
| CS-22/4015 | RC-22 RC-22C RC-24 RC-24E RC-24N RC-26 RC-26G RC-26GLP RC-30 RC-50 |
22x40 mm | #1.5 | 50 | 64-0717 |
| CS-22/50 | RC-26Z | 22x50 mm | #1 | 50 | 64-0708 |
| CS-24/50 | RC-27 RC-27L RC-27N RC-27NE RC-28 RC-29 |
24x50 mm | #1 | 50 | 64-0709 |
| CS-24/60 | RC-10 RC-11 RC-13 RC-16 |
24x60 mm | #2 | 50 | 64-0710 |
| Square coverglass (see the specific chamber page for listing of glasses for that chamber) |
|||||
References
References
- FAK Potentiates Rac1 Activation and Localization to Matrix Adhesion Sites: A Role for PIX,
Fumin Chang, Christopher A. Lemmon, Dongeun Park, and Lewis H. Romer,
MBC in Press 18:253-264, 2007 - Automated criteria-based selection and analysis of fluorescent synaptic puncta,
Jeremy B. Bergsman, Stefan R. Krueger, Reiko Maki Fitzsimonds,
Journal of Neuroscience Methods 152 (2006) 32-39, 2006 - Signaling Microdomains Regulate Inositol 1,4,5-Trisphosphate-Mediated Intracellular Calcium Transients in Cultured Neurons,
Simon N. Jacob, Chi-Un Choe, Per Uhlen, Brenda DeGray, Mark F. Yecke, and Barbara E. Ehrlich,
The Journal of Neuroscience, March 16, 2005, 25(11):2853-2864 - Orexin-A-induced Ca2+ Entry EVIDENCE FOR INVOLVEMENT OF TRPC CHANNELS AND PROTEIN KINASE C REGULATION,
Kim P. Larsson, Hanna M. Peltonen, Genevieve Bart, Lauri M. Louhivuori, Annika Penttonen, Miia Antikainen, Jyrki P. Kukkonen, and Karl E. O. Åkerman,
J. Biol. Chem., Vol. 280, Issue 3, 1771-1781, January 21, 2005
Related Products
Related Files
Customers from Europe and Australia can use the Multi Channel Systems - Online Shop to order Warner products or create quotes.
| Order No. | Model No. | Product Description | USA Price | Order |
|---|---|---|---|---|
| High Tolerance Round Coverslips: #1.5 Thickness (0.17 ± 0.01 mm) | ||||
| 64-0732 | CS-12R17 | High tolerance round cover glass, #1.5 thickness, 12 mm, 100 pack | Login | Login |
| 64-0733 | CS-15R17 | High tolerance round cover glass, #1.5 thickness, 15 mm, 100 pack | Login | Login |
| 64-0734 | CS-18R17 | High tolerance round cover glass, #1.5 thickness, 18 mm, 100 pack | Login | Login |
| 64-0735 | CS-25R17 | High tolerance round cover glass, #1.5 thickness, 25 mm, 100 pack | Login | Login |
| Small Round Coverslips: #0 Thickness (0.10 ± 0.02 mm) | ||||
| 64-0726 | CS-3R-0 | Small round cover glass, #0 thickness, 3 mm, 100 pack | Login | Login |
| 64-0731 | CS-5R-0 | Small round cover glass, #0 thickness, 5 mm, 100 pack | Login | Login |
| 64-0730 | CS-8R-0 | Small round cover glass, #0 thickness, 8 mm, 100 pack | Login | Login |
| Small Round Coverslips: #1 Thickness (0.15 ± 0.02 mm) | ||||
| 64-0720 | CS-3R | Small round cover glass, #1 thickness, 3 mm, 100 pack | Login | Login |
| 64-0739 | CS-3.5R | Small round cover glass, #1 thickness, 3.5 mm, 100 pack | Login | Login |
| 64-0724 | CS-4R | Small round cover glass, #1 thickness, 4 mm, 100 pack | Login | Login |
| 64-0740 | CS-4.5R | Small round cover glass, #1 thickness, 4.5 mm, 100 pack | Login | Login |
| 64-0700 | CS-5R | Small round cover glass, #1 thickness, 5 mm, 100 pack | Login | Login |
| 64-0723 | CS-7R | Small round cover glass, #1 thickness, 7 mm, 100 pack | Login | Login |
| 64-0701 | CS-8R | Small round cover glass, #1 thickness, 8 mm, 100 pack | Login | Login |
| Small Square Coverslips: #1 Thickness (0.15 ± 0.02 mm) | ||||
| 64-0728 | CS-3S | Small square cover glass, #1 thickness, 3 x 3 mm, 100 pack | Login | Login |
| 64-0725 | CS-5S | Small square cover glass, #1 thickness, 5 x 5 mm, 100 pack | Login | Login |
| Round Coverslips: #1 Thickness (0.15 ± 0.02 mm) | ||||
| 64-0720 | CS-3R | Small round cover glass, #1 thickness, 3 mm, 100 pack | Login | Login |
| 64-0724 | CS-4R | Small round cover glass, #1 thickness, 4 mm, 100 pack | Login | Login |
| 64-0700 | CS-5R | Small round cover glass, #1 thickness, 5 mm, 100 pack | Login | Login |
| 64-0723 | CS-7R | Small round cover glass, #1 thickness, 7 mm, 100 pack | Login | Login |
| 64-0701 | CS-8R | Small round cover glass, #1 thickness, 8 mm, 100 pack | Login | Login |
| 64-0702 | CS-12R | Round cover glass, #1 thickness, 12 mm, 100 pack | Login | Login |
| 64-0703 | CS-15R | Round cover glass, #1 thickness, 15 mm, 100 pack | Login | Login |
| 64-0384 | CS-18R | Round cover glass, #1 thickness, 18 mm, 100 pack | Login | Login |
| 64-0705 | CS-25R | Round cover glass, #1 thickness, 25 mm, 100 pack | Login | Login |
| 64-1500 | CS-40R | Round cover glass, #1 thickness, 40 mm, 50 pack | Login | Login |
| Round Coverslips: #1.5 Thickness (0.17 ± 0.02 mm) | ||||
| 64-0718 | CS-10R15 | Round cover glass, #1.5 thickness, 10 mm, 100 pack | Login | Login |
| 64-0712 | CS-12R15 | Round cover glass, #1.5 thickness, 12 mm, 100 pack | Login | Login |
| 64-0713 | CS-15R15 | Round cover glass, #1.5 thickness, 15 mm, 100 pack | Login | Login |
| 64-0714 | CS-18R15 | Round cover glass, #1.5 thickness, 18 mm, 100 pack | Login | Login |
| 64-0715 | CS-25R15 | Round cover glass, #1.5 thickness, 25 mm, 100 pack | Login | Login |
| 64-1499 | CS-30R15 | Round cover glass, #1.5 thickness, 30 mm, 90 pack | Login | Login |
| 64-1696 | CS-40R15 | Round cover glass, #1.5 thickness, 40 mm, 100 pack | Login | Login |
| Round Coverslips: #2 Thickness (0.22 ± 0.02 mm) | ||||
| 64-0722 | CS-25R20 | Round cover glass, #2 thickness, 25 mm, 100 pk | Login | Login |
| Square & Rectangular Coverslips: #1 Thickness (0.15 ± 0.02 mm) | ||||
| 64-0728 | CS-3S | Small square cover glass, #1 thickness, 3 x 3 mm, 100 pack | Login | Login |
| 64-0725 | CS-5S | Small square cover glass, #1 thickness, 5 x 5 mm, 100 pack | Login | Login |
| 64-0707 | CS-22/40 | Rectangular cover glass, #1 thickness, 22 x 40 mm, 50 pack | Login | Login |
| 64-0708 | CS-22/50 | Rectangular cover glass, #1 thickness, 22 x 50 mm, 50 pack | Login | Login |
| 64-0709 | CS-24/50 | Rectangular cover glass, #1 thickness, 24 x 50 mm, 50 pack | Login | Login |
| Square & Rectangular Coverslips: #1.5 Thickness (0.17 ± 0.02 mm) | ||||
| 64-0721 | CS-22S15 | Square cover glass, #1.5 thickness, 22 x 22 mm, 100 pack | Login | Login |
| 64-0716 | CS-22/3015 | Rectangular cover glass, #1.5 thickness, 22 x 30 mm, 100 pack | Login | Login |
| 64-0717 | CS-22/4015 | Rectangular cover glass, #1.5 thickness, 22 x 40 mm, 50 pack | Login | Login |
| Rectangular Coverslips: #2 Thickness (0.22 ± 0.02 mm) | ||||
| 64-0710 | CS-24/60 | Rectangular cover glass, #2 thickness, 24 x 60 mm, 50 pack | Login | Login |
