(SH-27B, SF-28) Single Inline Solution Heaters

Click to enlarge

Product Summary

In-line solution heaters are the most direct way to warm solutions flowing into a Series 20 Imaging and Recording Chamber.



  • Small size allows placement close to imaging and recording recording so as to minimize convective heat losses
  • Single line in-line solution heaters include T1 thermister embedded within aluminum housing for feedback control

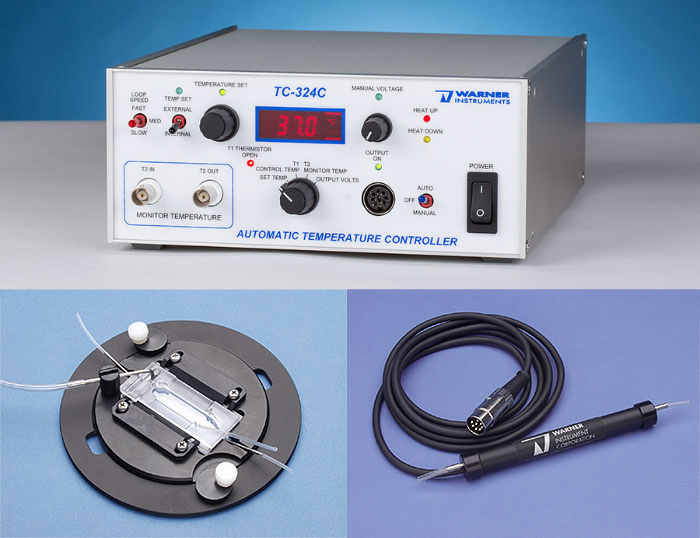

  • Designed to operate with TC-344C or TC-324C temperature controllers
  • Output temperature - ambient to 65°C

In-line solution heating is the simplest and most effective method of warming perfusion solutions. The heater is connected to the chamber with a short length of tubing such that the warmed perfusate flows directly into the chamber bath. Depending on bath volume and other factors, in-line solution heating alone by it self may be sufficient for many applications.

Single Inline Solution Heaters (SH-27B, SF-28)

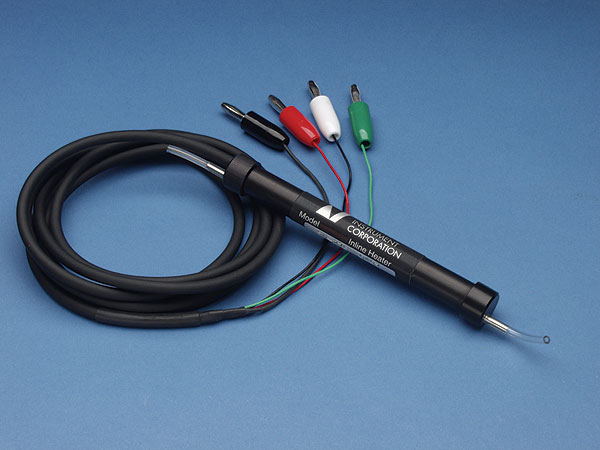

In-line solution heaters from Warner Instruments are used to warm perfusate solutions as they flow into a chamber (such as our Imaging and Recording Chambers). Their small size allows for placement close to the chamber input allowing the perfusate to be warmed immediately prior to entry. The SH-27B is our rapid flow in-line solution heater. It is ideal for perfusion flows up to 10 ml/min while the SF-28 is recommended for applications requiring solution flow rates of less than 2 ml/min.

Single Inline Solution Heaters (SH-27B, SF-28)



Temperature control is maintained by an internal feedback thermistor (i.e. T1 on the heater controller) which senses the temperature at the outflow end of the heater. This sensing thermistor is located outside of the solution path and is therefore not subjected to corrosive salts or careless cleaning.

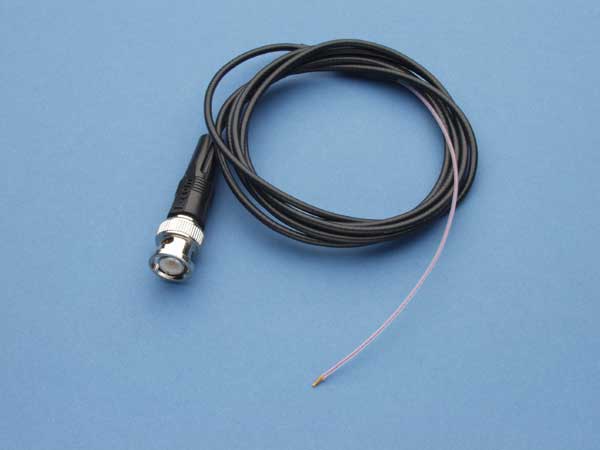

Each heater is also supplied with a Model TA-29 monitor thermistor cable assembly (as shown on the right) which allows for monitoring the actual bath temperature (T2 output on the heater controller). Solutions are gradually warmed as they flow from input to output resulting in minimal outgassing. Heater input and output lines accept standard 1/16" OD (PE-160) tubing.

Heater Resistance 10Ω
Voltage Requirement Variable 0 to 12 VDC max.
Maximum Temperature 65°C
Internal Dead Volume 260 μl
Maximum Flow Rate at 37°C
SF-28 2 ml/min
SH-27B 10 ml/min
Physical Dimensions
Body 12.5 mm x 12.5 cm (D x L)
Cable 1.9 m
Bath thermistor dimensions 0.85 x 4.6 mm
Warranty 1 year
Temperature of 37°C can be maintained at ± 0.2°C under following conditions:
Condition A Solution temperature at input (nominally 21°C) varies no more than ±10%
Condition B Solution flow rate varies no more than 25%

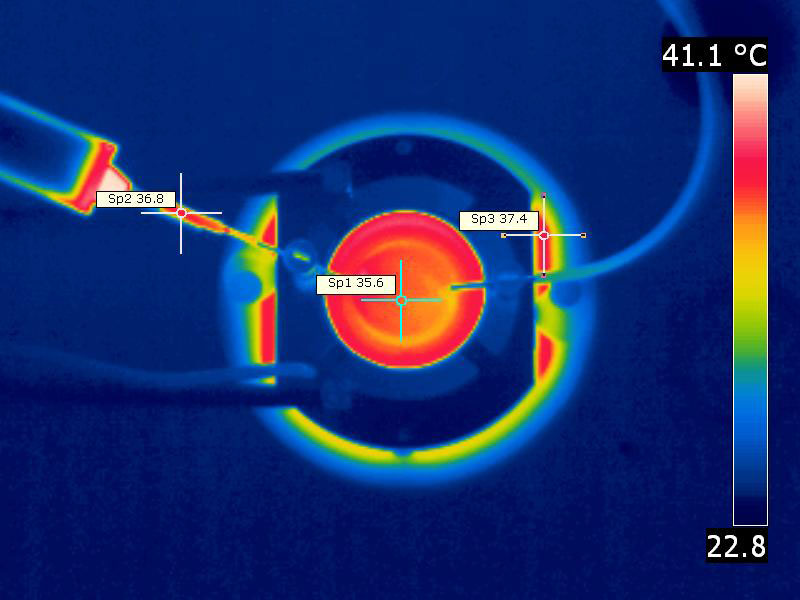

Infrared Image

Single Inline Solution Heaters (SH-27B, SF-28)


QE-1 Quick Exchange Platform with SH-27B In-Line Heater: heating with perfusion.
Conditions:
Ambient Temperature 21.5C
Relative Humidity 62.3%
TC-344B Temperature Controller:
QE-1 Set Temperature 38C
SH-27B Set Temperature 40C
Flow Rate 2 ml/min.



Last Revision 1.9.13



Order No. Model No. Product Description USA Price Order.
64-0107 TA-29 Cable with bead thermistor Login Login
64-0108 TA-30 Cable with glass thermistor Login Login
64-1555 SHH-1 Holder for SH-27B and SF-28 inline solution heaters Login Login
64-0755 PE-160/10 Polyethylene tubing, PE-160, 10 ft Login Login
